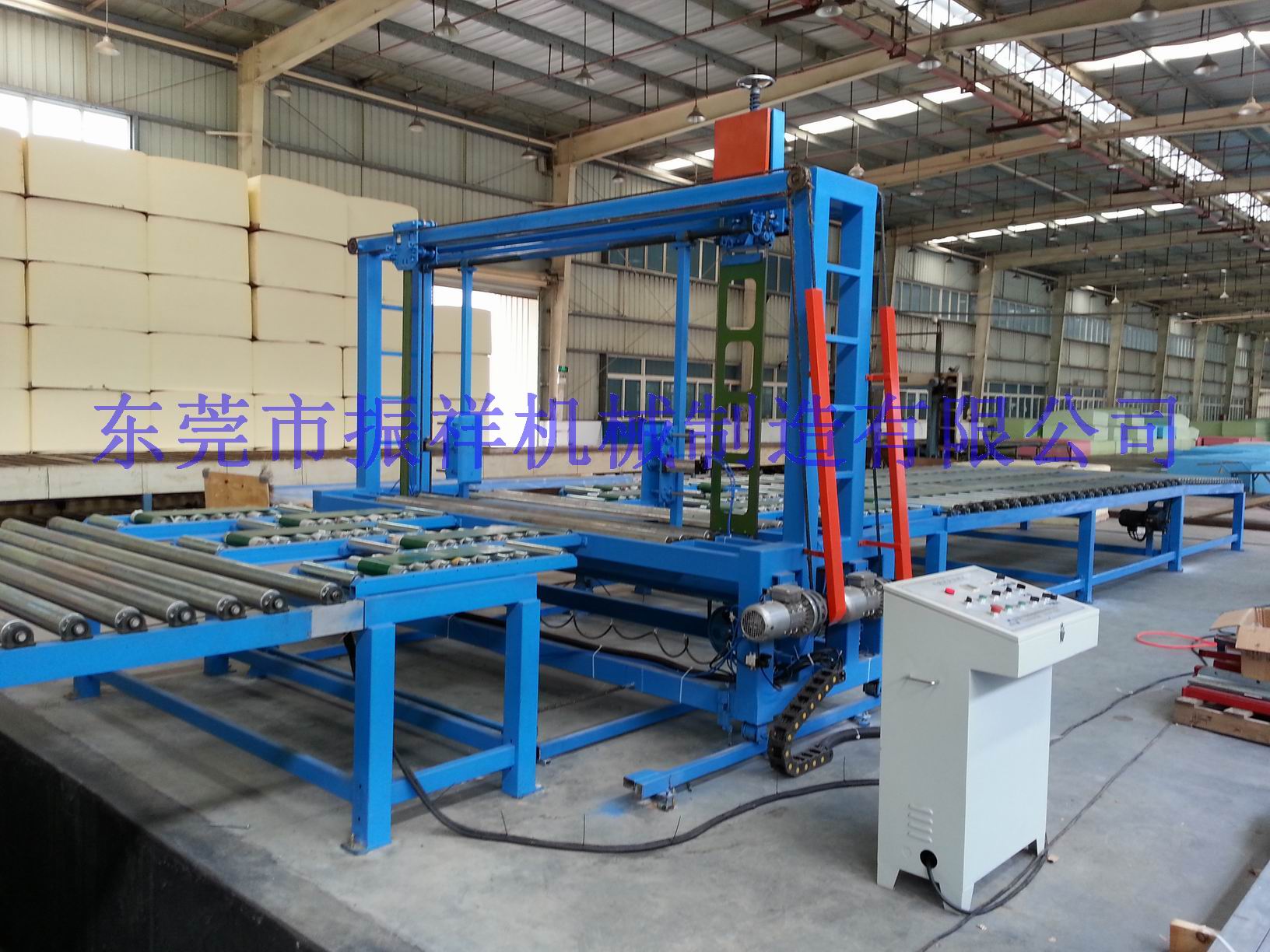

This machine installed on the foam conveyor line, it is used for continuous foam cut to some length, in order to transport, storage and processing. This machine adopts digital control, the knife belt is thin and sharp and moving left and right to cut horizontally moved foam, the machine is simple to operate and cut precisely.
|
Model |
ZXCD-2400A |
|
Cutting foam height |
1300mm |
|
Cutting foam width |
2400mm |
|
Blade frame moving speed |
21m/min |
|
Conveyer belt speed |
0~8m/min |
|
power |
7.2kw |
|
machine external size |
L3700xw1300xH2300mm |
